An I.C. card realizes the rationalization of the operation!


Specially, it thinks that it can have it satisfied when it is broadcast in the place where it got crowded.

This is different from the recording regenerated machine till now.



It can be used semipermanently.
There is no anxiety of the trouble due to the friction because of the recording regenerated machine of the use of an I.C card not to have a rotation mechanism.

The amounts of information increased very much.
6 sheets of IC cards are about 52-minute (3120 seconds) and a long time by loading. (It is attached to one sheet, and it is about eight minutes.)

It can regenerate momentarily.
It can regenerate like a tape recorder momentarily because it is reeled and rapid feed work shouldn't be necessary.

When is natural, too, and the voice recorded with a PCM form is a beautiful tone.

Phrase composition can be controlled easily with a personal computer (RS-232C).

Contents of broadcasting of the different kind can be outputted in 4 system at the same time.

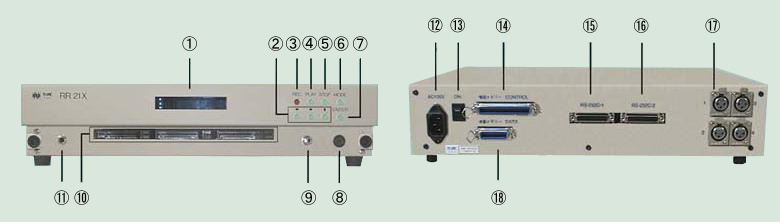

RR21X Machine name

1
DISPLAY
7
ENTER switch
13
Power switch
2
Cursor movement switch
8
FUSE 1A
14
Increasing memory CONTROL connector
3
REC switch
9
A jack for Headphones
(Mono)
15
RS-232C
A connector for the remote control
4
PLAY switch
10
IC card
16
RS-232C
A connector for the software DEBUG
5
STOP switch
11
Voice input jack
17
the voice output 1 - 4 connector
6
MODE switch
12
Power supply input connector
18
Increasing memory DATA connector

Standard and performance
